Wayne Dalton Light Socket

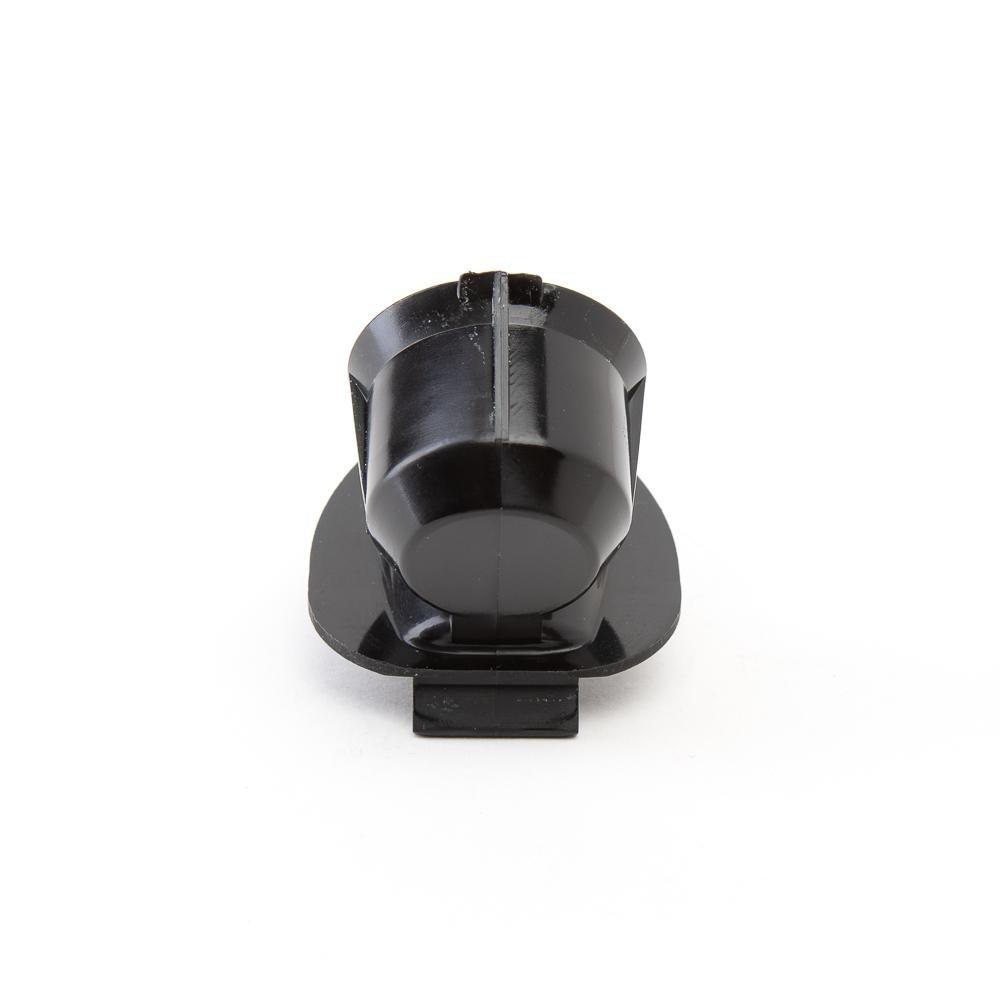

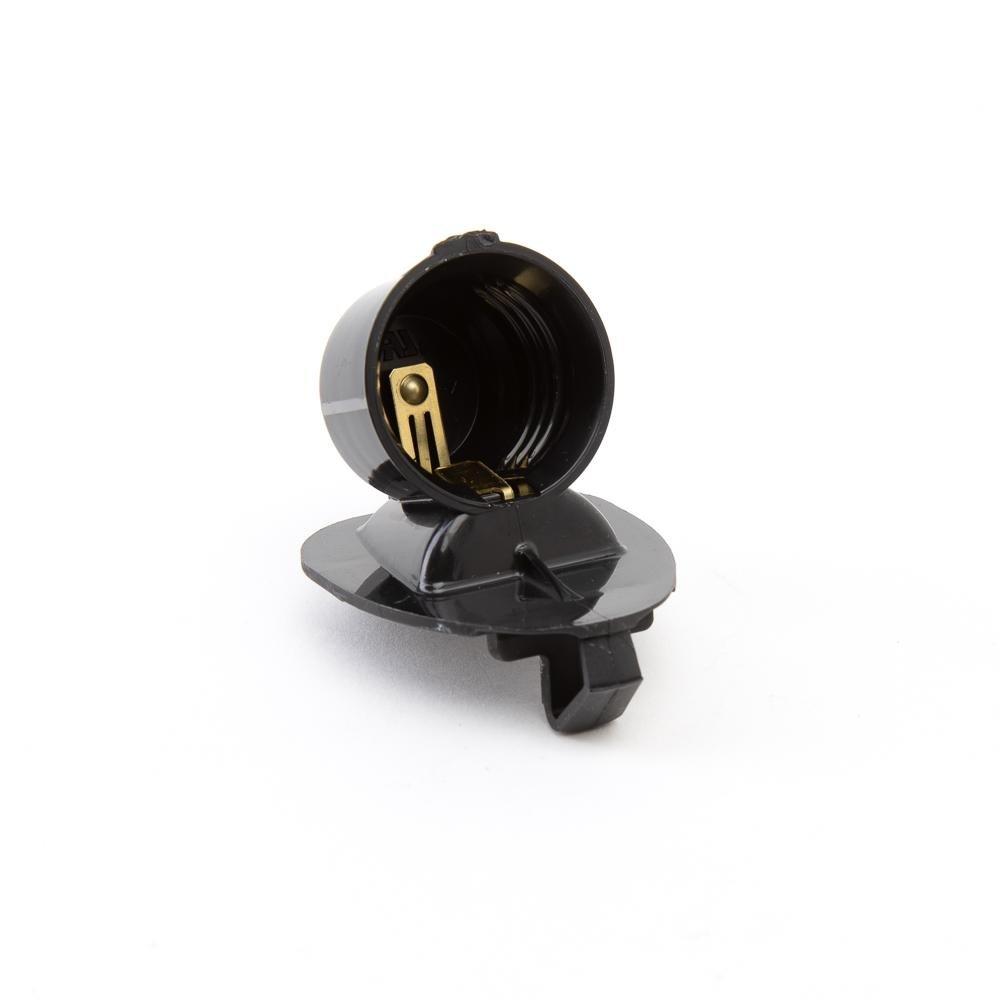

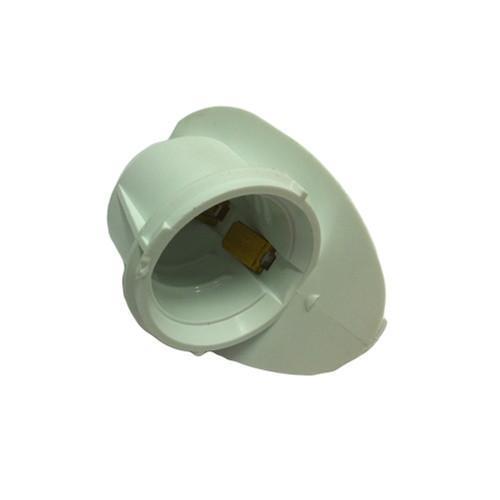

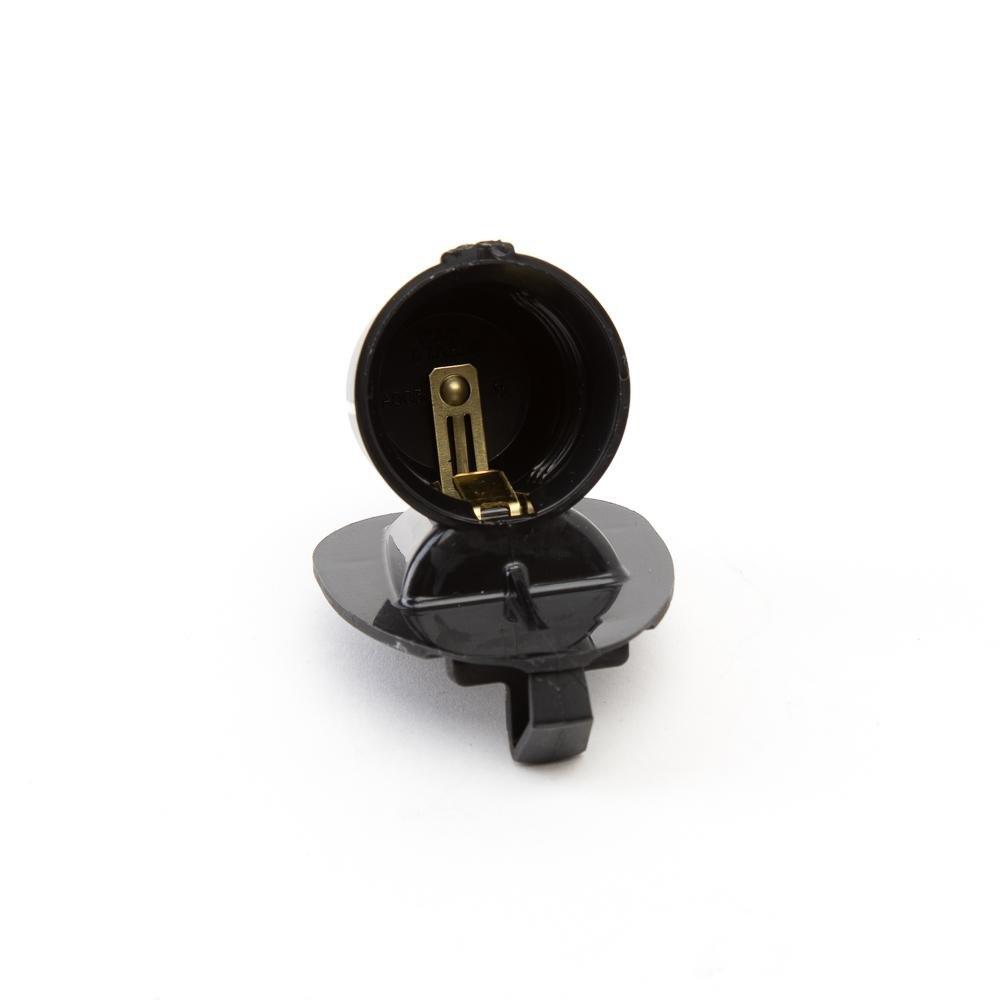

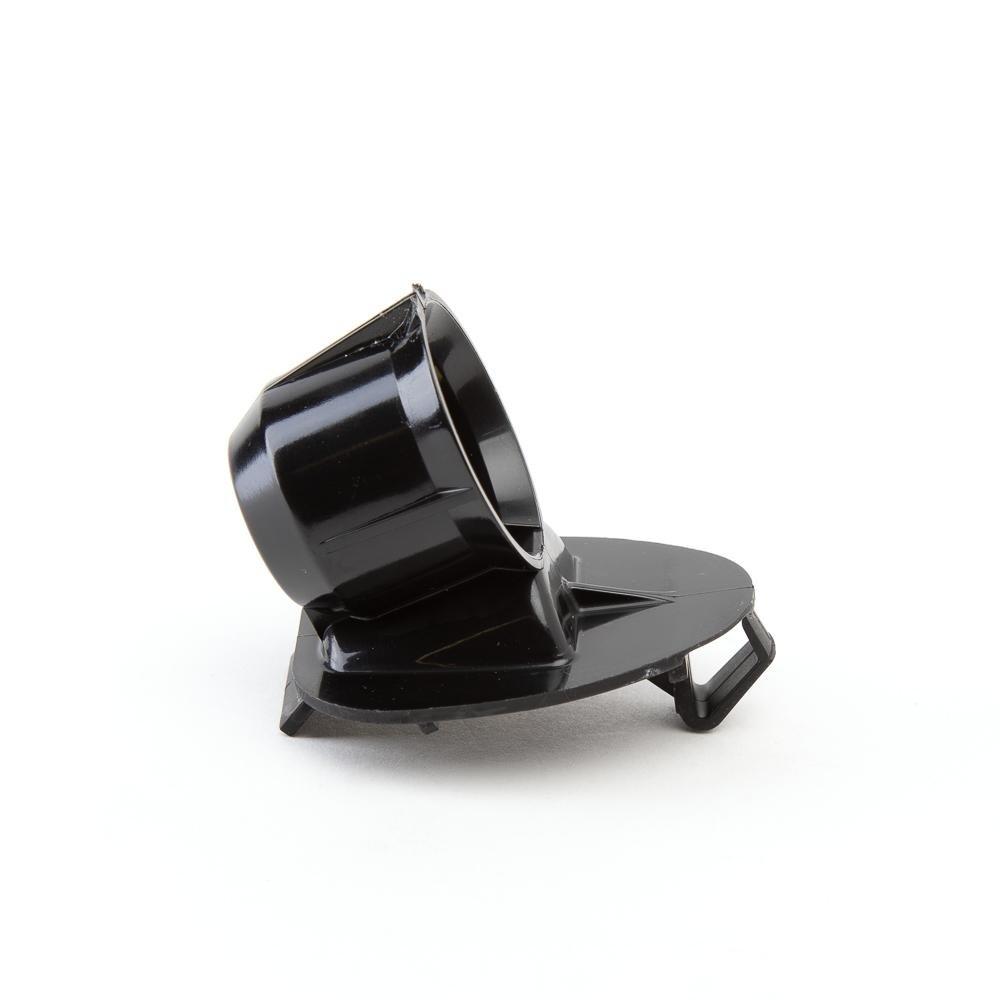

Light Socket Plug for Wayne Dalton Quantum, Classic Drive, Prodrive, and Wayne Dalton Models 100-320 garage door openers. Original color-white or black depending on your model. Replacement socket color is black.

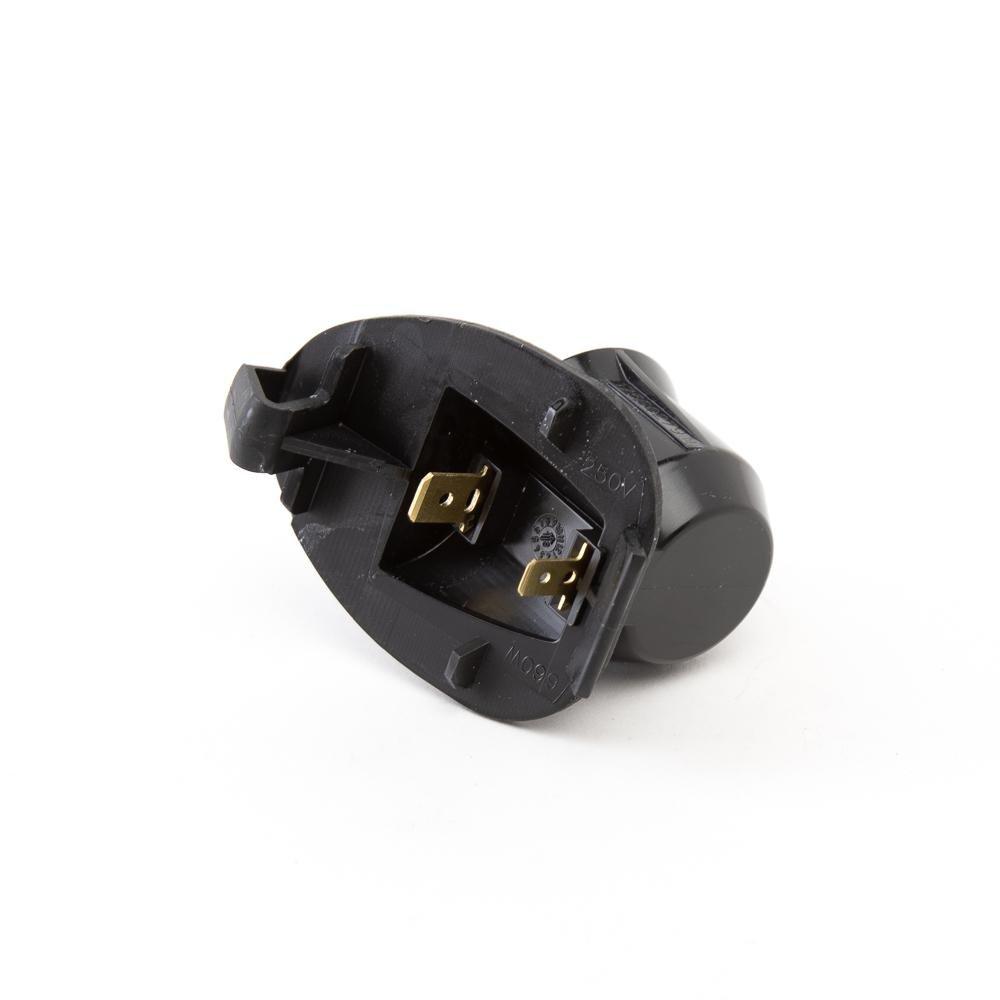

You will have to remove the plastic motor housing to access this most easily, which is how we started out in this video. You can pop the socket out from the front of your motor without taking the plastic housing off using a screwdriver to push the tab in (reference the left tab seen in this video), it's just a little more challenging. Once you have the socket removed from the motor body, take note of which combination of wires are attached to the back of it. Remove the wire terminals from the back two prongs on the socket (using a flathead screwdriver is easiest). Swap out socket for new one and reinsert the wire terminals the same location they were removed from the old socket. Reinstall socket to motor body as demonstrated.
Compatible with:
- Wayne Dalton Quantum - all models 3211, 3212, 3213, 3214, 3312, 3313, 3314, 3316, 3412, 3414
- Wayne Dalton Classic Drive - all models 3012, 3014, 3016, 3018, 3018DLX, 3512, 3514, 3522, 3522DLX
- Wayne Dalton Prodrive - all models 3220C, 3221C, 3222C, 3224C, 3320B, 3322B, 3324B, 3220C-Z, 3221C-Z, 3222C-Z, 3224C-Z, 3320B-Z, 3322B-Z, 3324B-Z
- Wayne Dalton 100-300 - all models 100WD, 110WD, 200WD, 210WD, 215WD, 220WD, 300WD, 310WD, 315WD, 320WD
