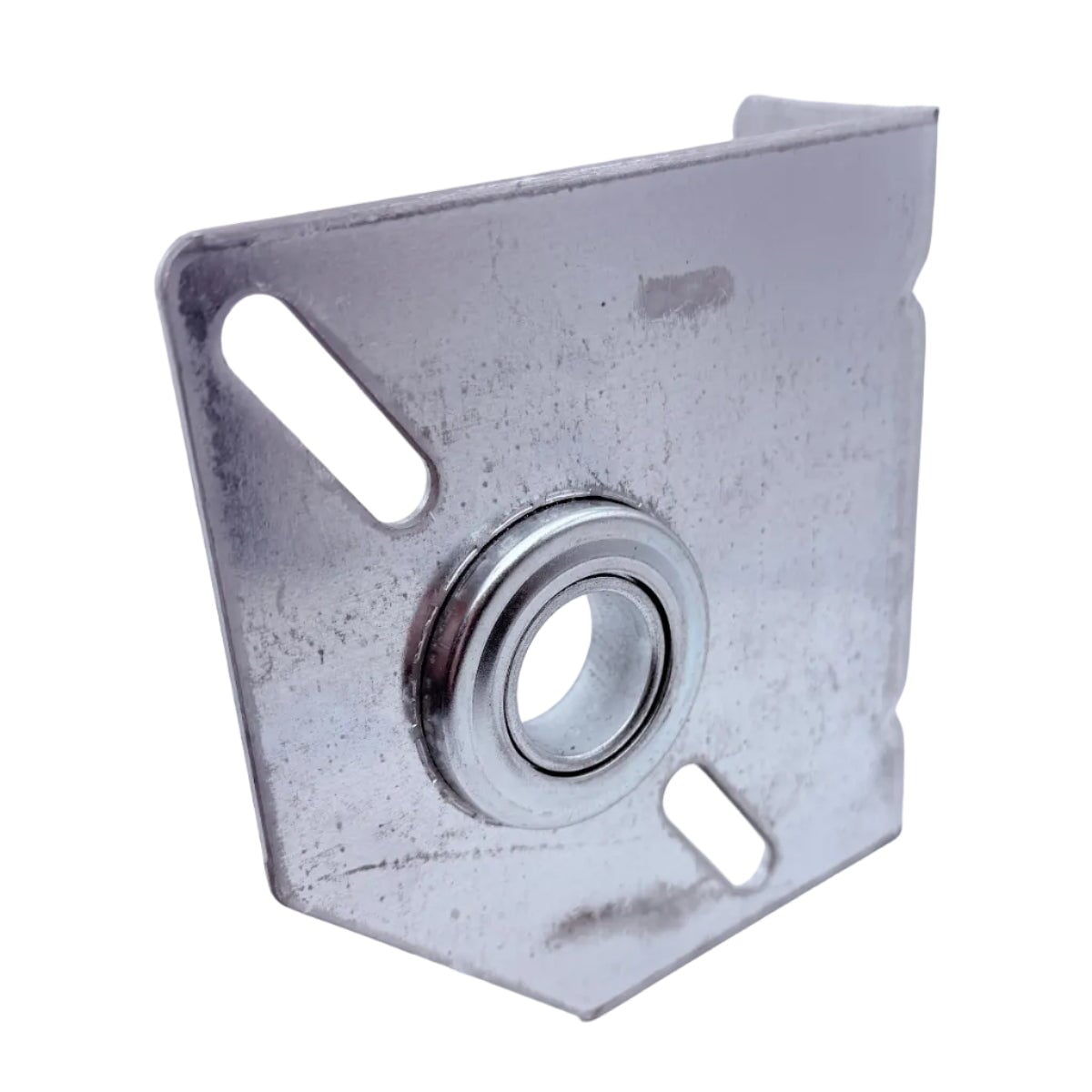

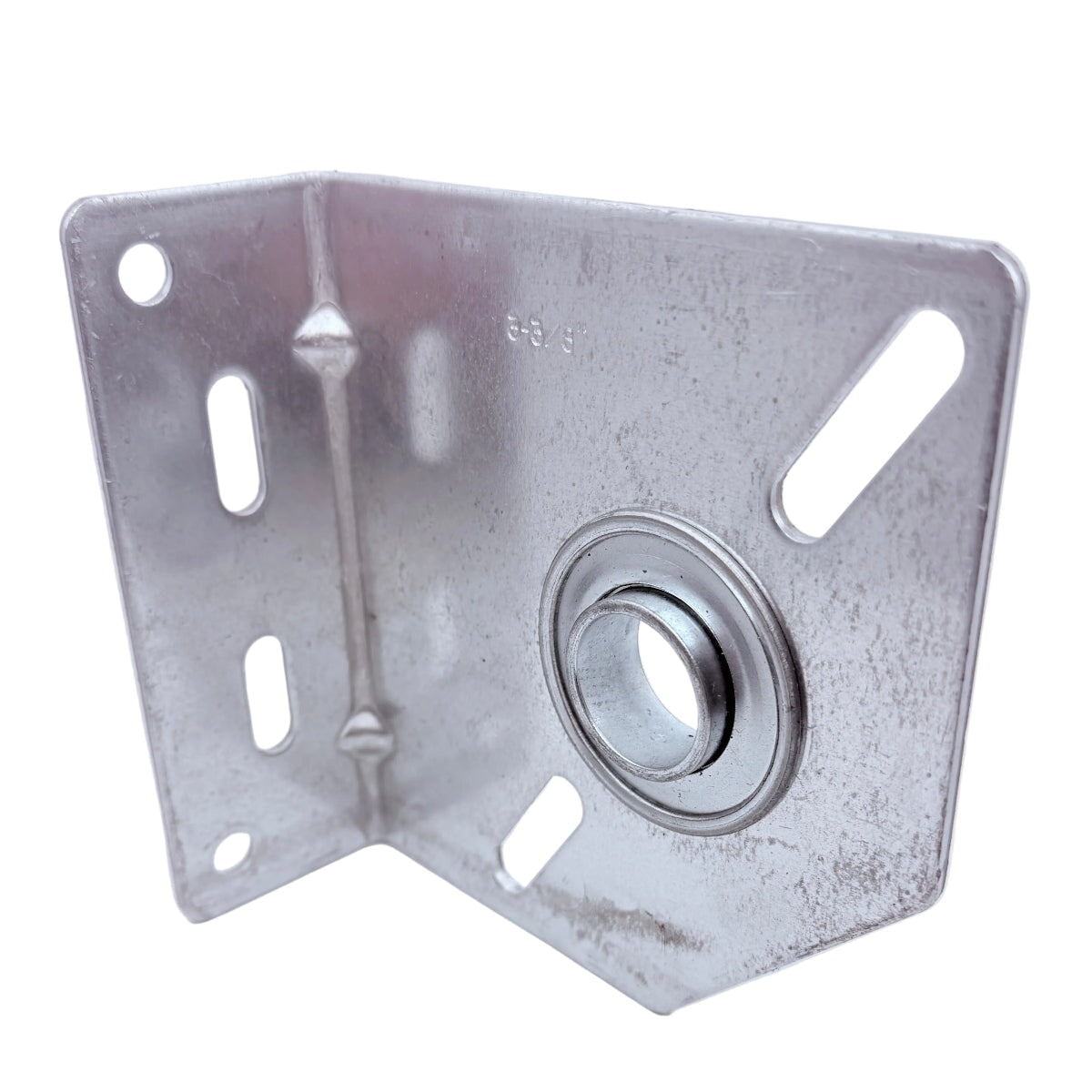

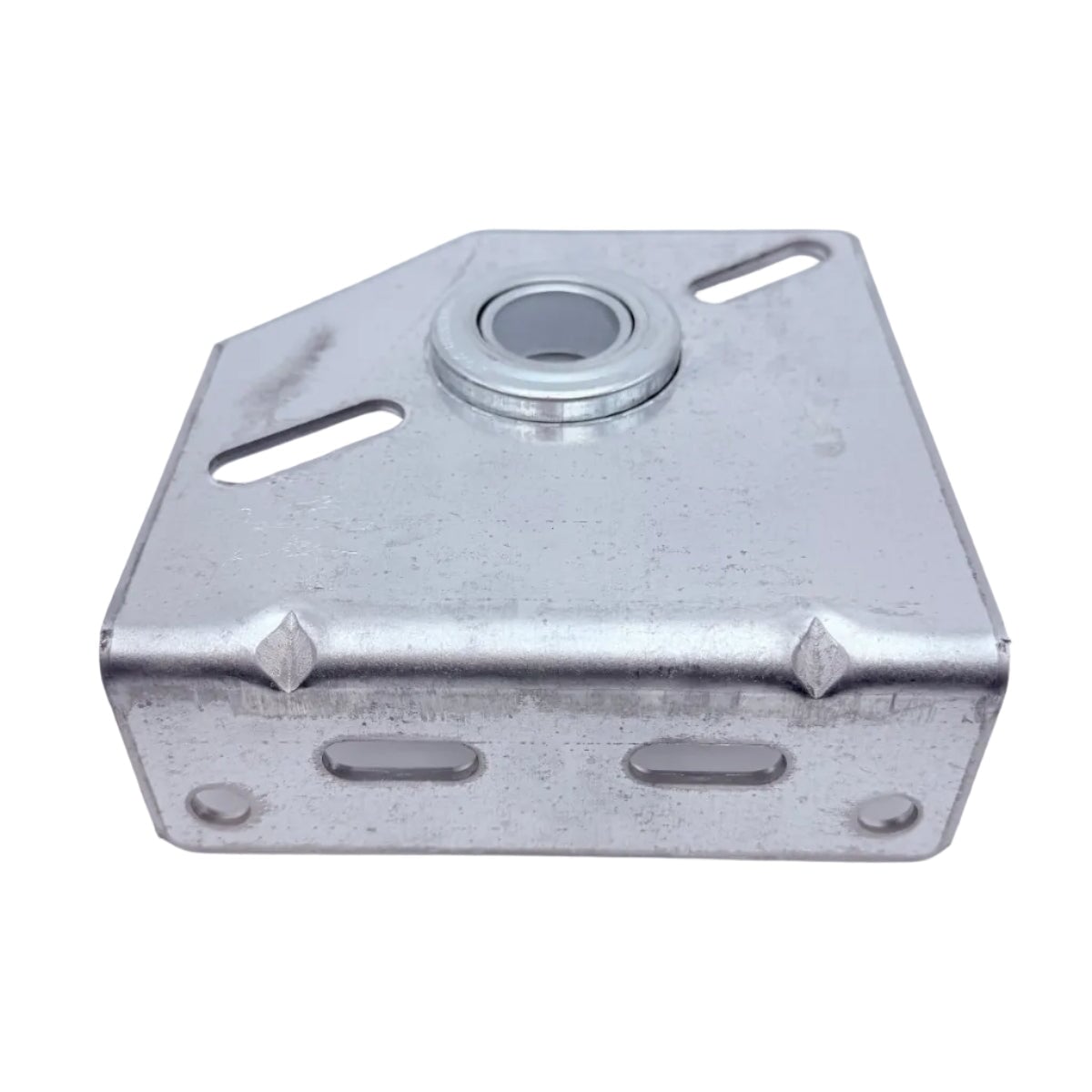

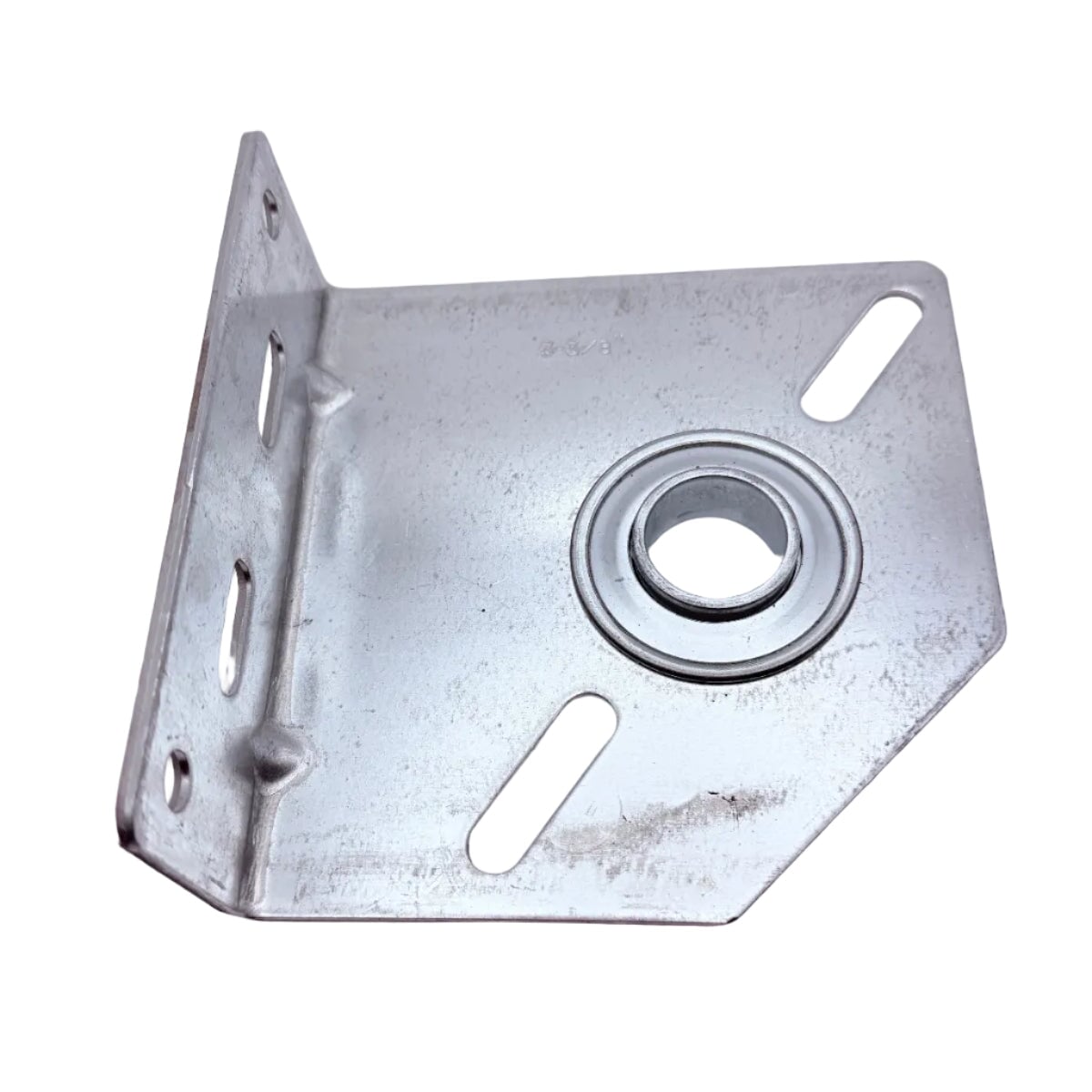

Commercial Torsion Spring Bearing Plate with 1" Bearing – 10 Gauge Steel, 3-3/8" Shaft Centerline

The Commercial Torsion Spring Bearing Plate with 1" Bearing is a heavy-duty support plate designed for commercial and industrial garage door torsion spring systems. Featuring a pre-installed 1 inch center bearing, this plate provides strong torsion shaft support and smooth shaft rotation for high-cycle and heavy-duty door applications.

Constructed from durable 10-gauge steel, this bearing plate is built to withstand the demands of commercial overhead doors while maintaining proper shaft alignment and reducing friction during operation.

The 3-3/8 inch shaft centerline configuration allows compatibility with multiple torsion spring sizes, making this plate suitable for a wide range of commercial torsion spring assemblies.

Key Features

• Heavy-duty 10 gauge steel construction
• Pre-installed 1 inch center bearing
• 3-3/8 inch shaft centerline
• Compatible with torsion springs with 1.75", 2", or 2-5/8" inside diameters
• Designed specifically for commercial garage door torsion spring systems
• Provides stable torsion shaft support and smooth rotation

Product Specifications

• Dimensions: 5.5" x 5.5" x 2"
• Material: 10 gauge steel
• Bearing Size: 1 inch center bearing
• Shaft Centerline: 3-3/8 inch

Common Applications

• Commercial sectional garage doors
• Industrial overhead door torsion spring systems
• Replacement or new installation torsion shaft support plates

Compatibility Notes

Confirm torsion spring inside diameter, shaft size, and mounting configuration before ordering to ensure compatibility with your garage door system.
