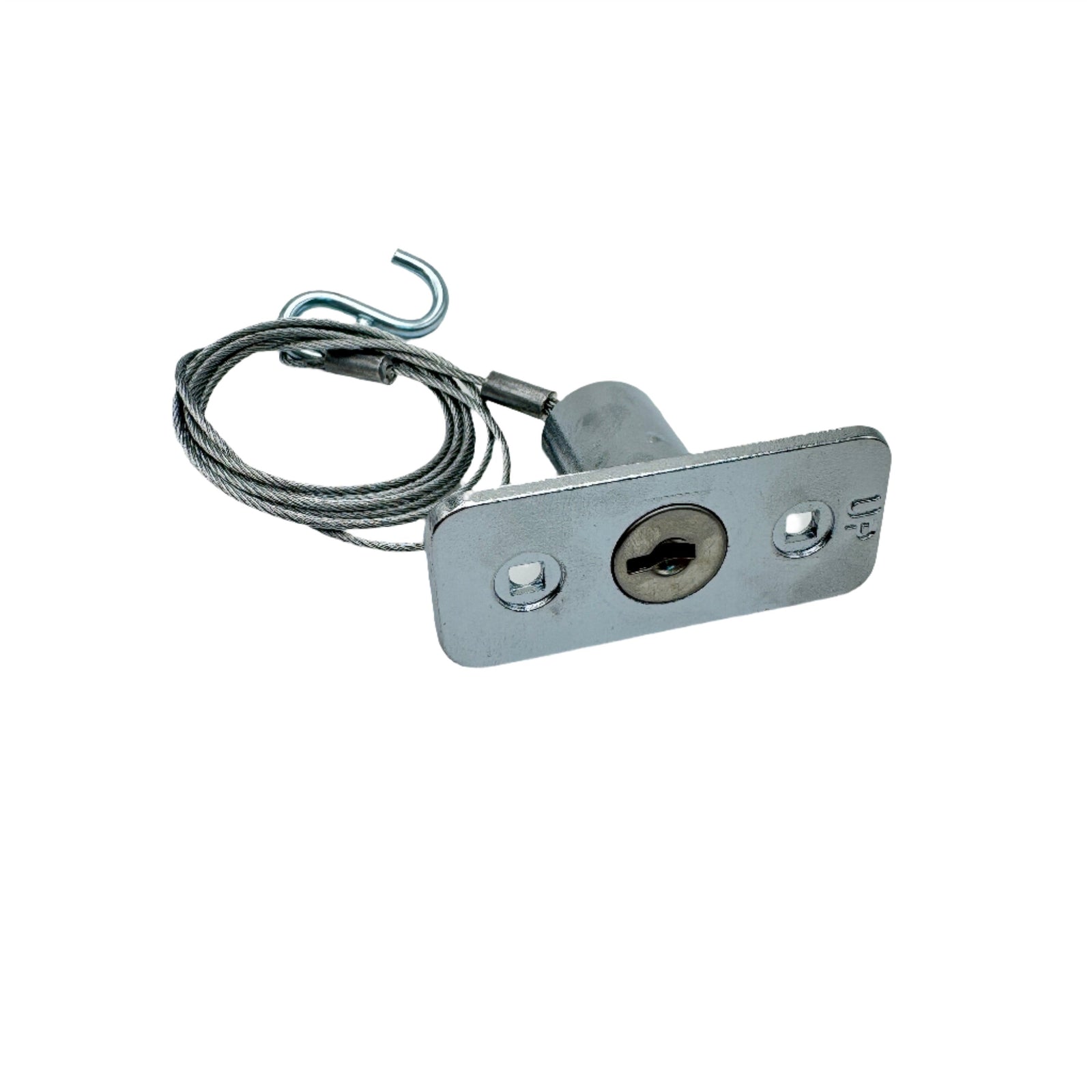

Wayne Dalton Key Cable Disconnect
This Outside Disconnect Kit is designed for all residential chain drive, belt drive, and screw drive garage door openers.

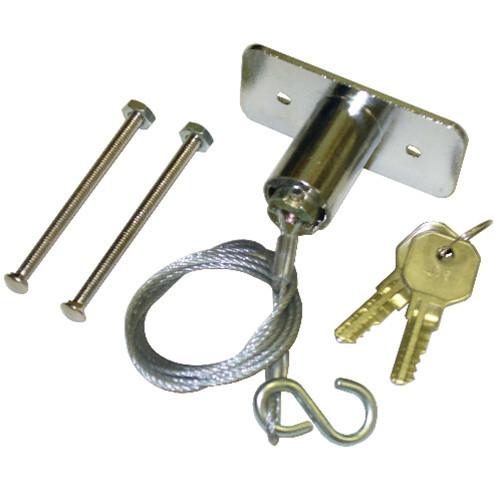

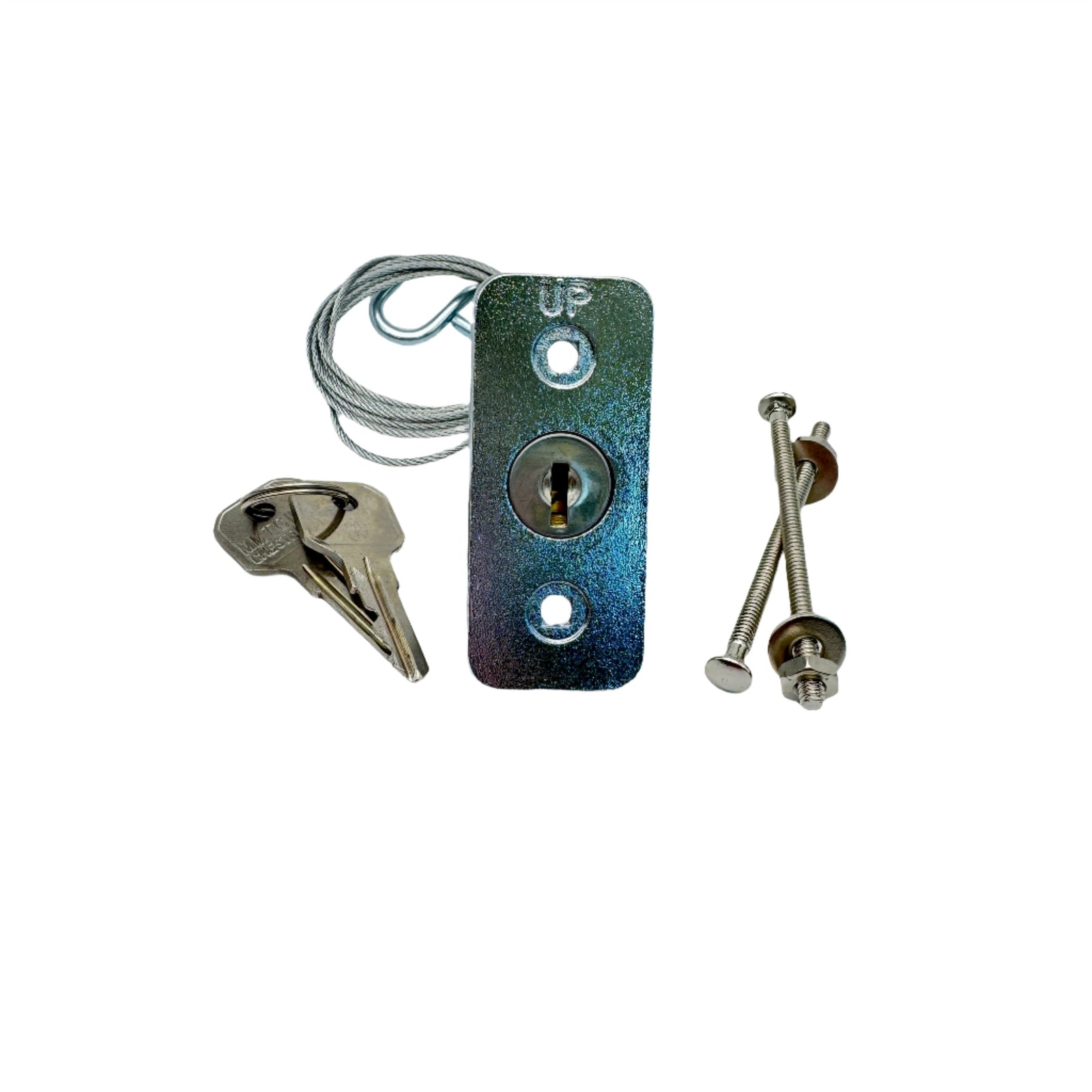

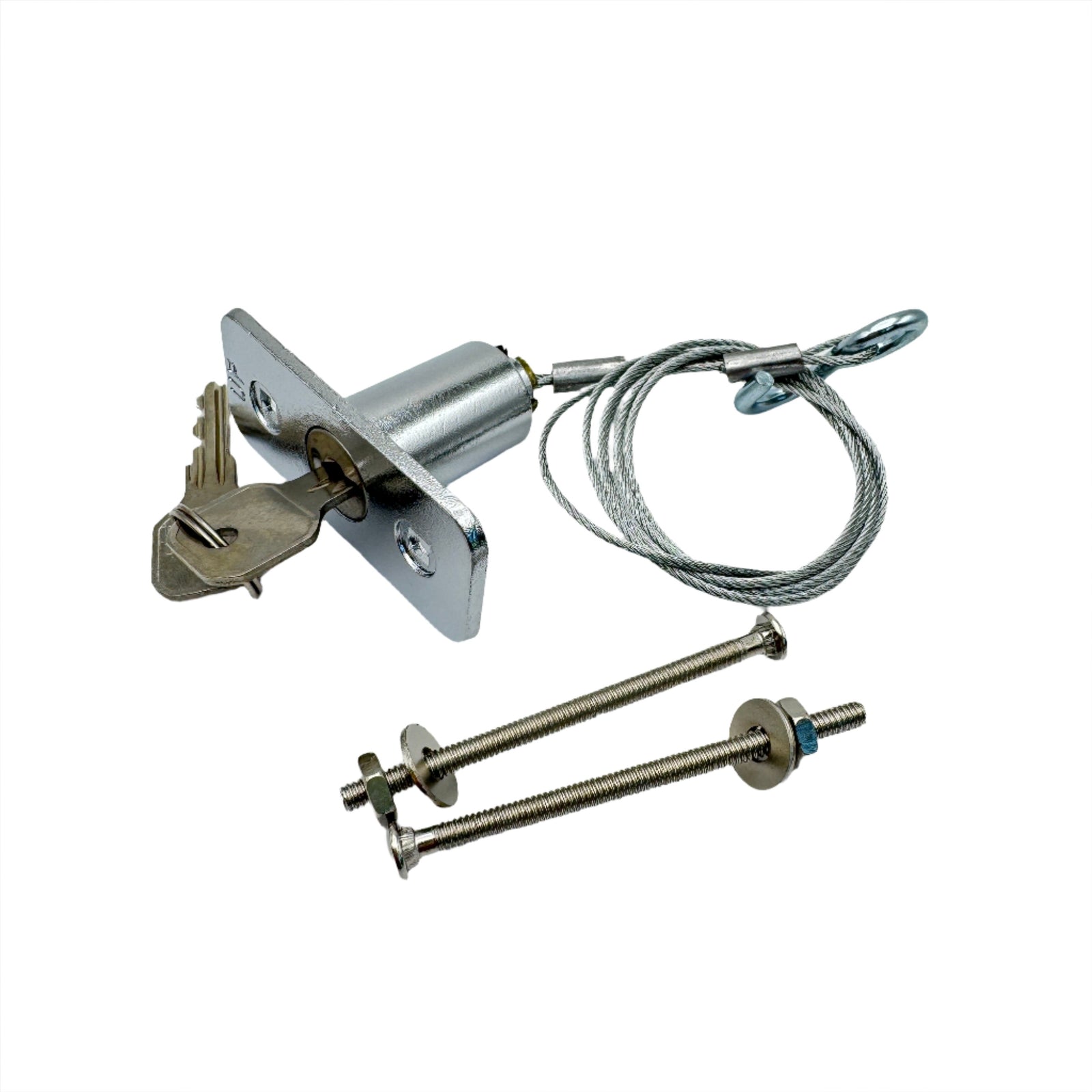

Includes:
- Lock with cable
- 2 keys
- Mounting bolts
- Instructions
Specifications:
- Part No: 157277
- Color: Silver
- Manufacturer: Wayne Dalton Corp
Click here to download Installation Instructions
- Drill 3/4" hole through center line of door at approximately arm level on door.
- Insert disconnect device into hole and mark the position of mounting bolt holes. Drill 3/16 " holes at these two points.
- Insert mounting bolts and affix flat washers and nuts. Tighten down nuts and cut off extended bolt. Use a file to smooth rough edge.

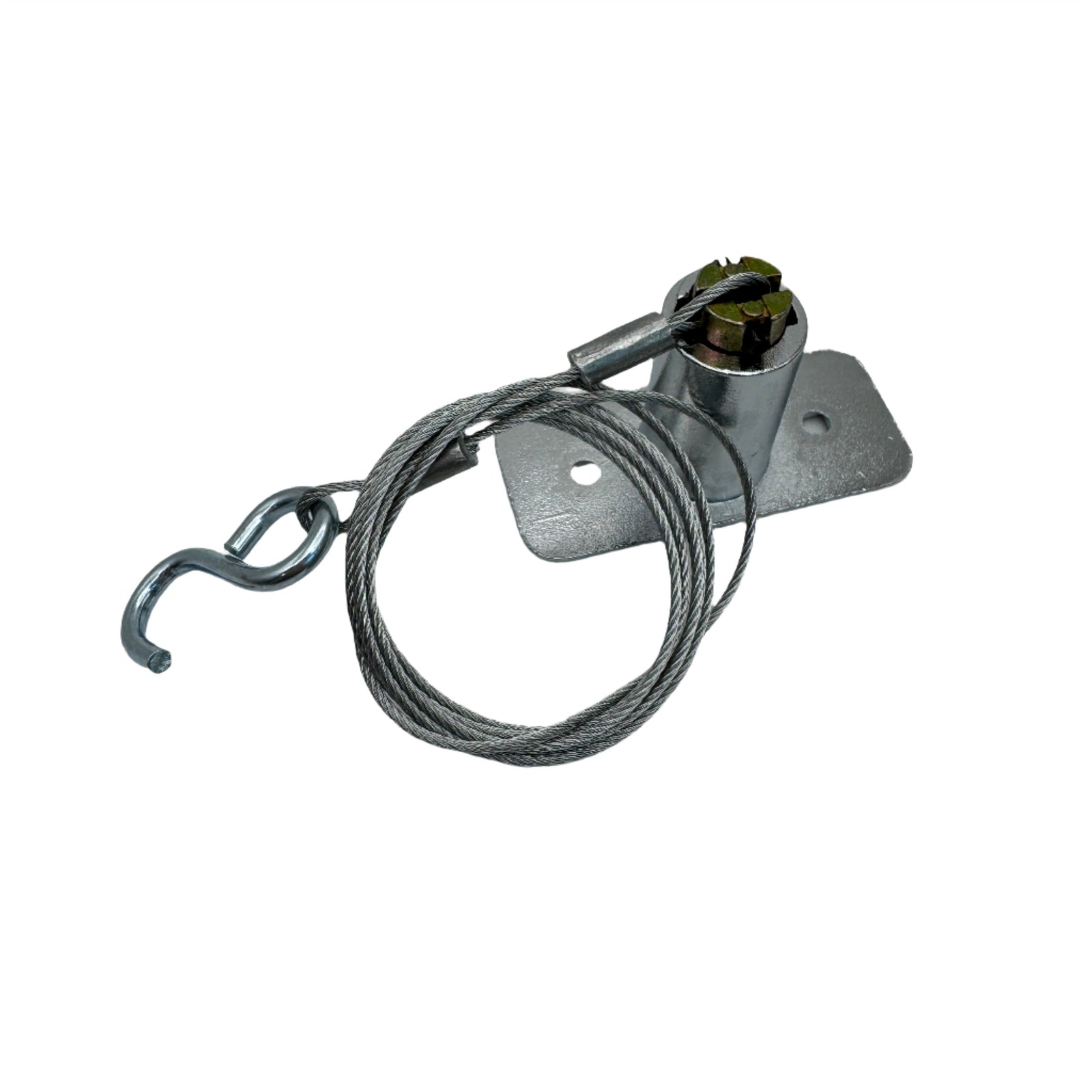

- Remove pull cord from existing door arm disconnect device and connect "S" hook.
OPERATION
- Insert key and turn counter-clockwise. Pull lock cylinder out of its housing.
- Grasp cable and pull until tight. Lift door while pulling cable.
- Replace lock cylinder into housing and lock. Remove key.
Compatible with:
- All residential chain drive, belt drive, and screw drive garage door openers. Genie, Sears, Liftmaster, Challenger, Chamberlain, Wayne Dalton, Allstar, Linear, and all others.
